XP AK Plus Valve

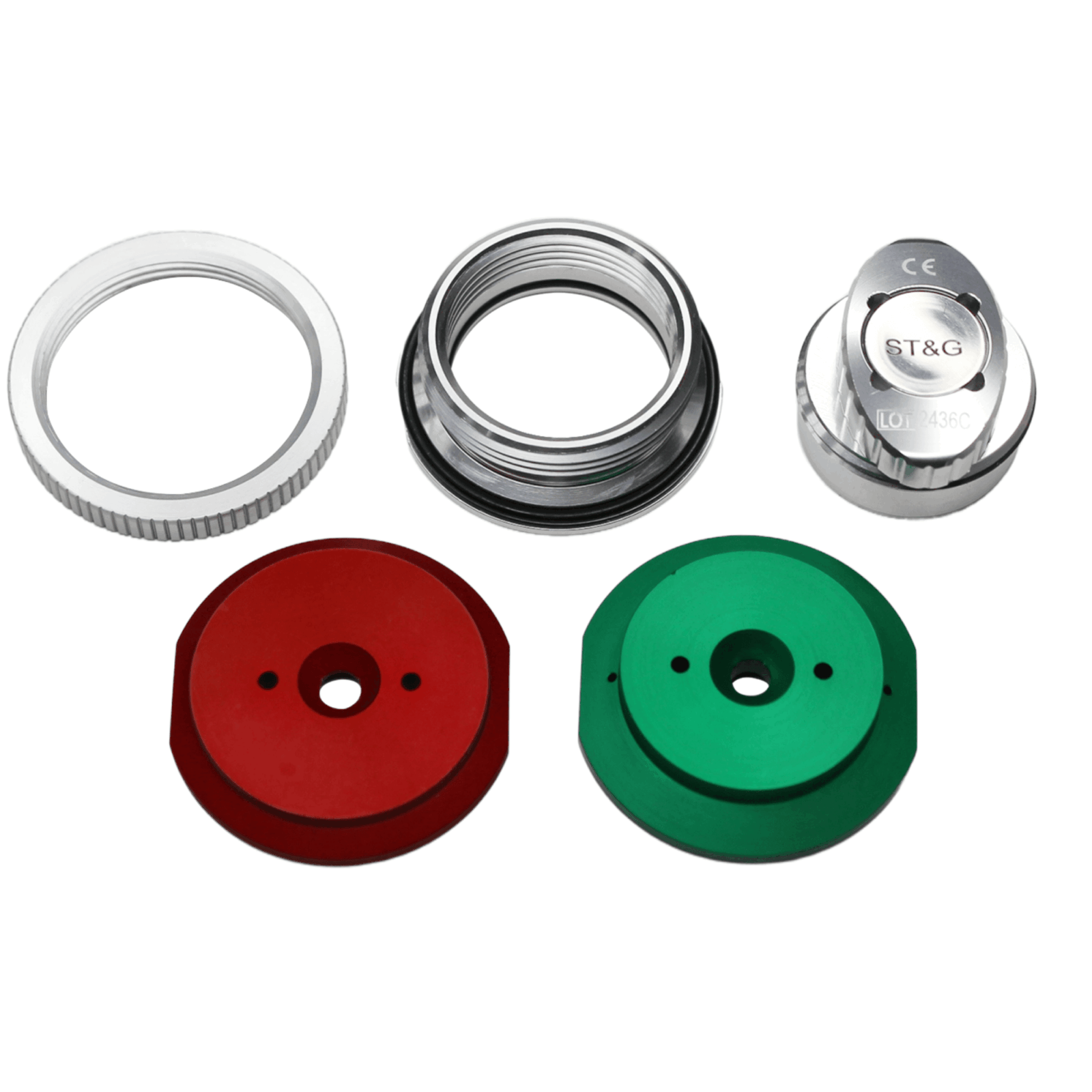

Includes:

• Valve
• Housing with O-ring and retainer
• Red Dummy for laminated sockets
• Green Dummy for plastic sockets

DESCRIPTION

The 3206 XP AK+ is an auto-expulsion valve with push button for suction release., and can be used for high impact use, e.g., walking, jogging, and running.

Specifications:

Overall Dimensions assembled:

• Diameter Base: 39mm / 1.5in
• Height: 20mm / 0.78in
• Weight: 41.2g/1.45oz

• Transtibial or Transfemoral users
• Kit includes a lamination or plastic socket dummy
• Aluminum housing and retainer ring
• Auto expels air under positive pressure when entering a socket
• Remove prosthesis with the push button release to allow air back into the socket
• Valve mechanism is enclosed in Aluminum housing
