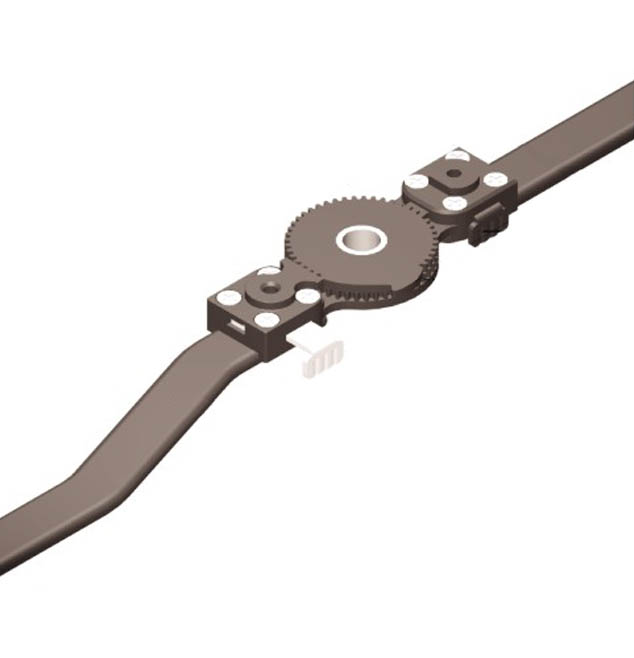

This joint can be used in the fabrication of custom orthoses for orthopedic rehabilitation and neurological spasticity treatment through low load stretching. These orthoses are considered therapeutic and are not designed for ambulation. Comes individually, specify left or right.

Range: 0 – 135 degrees
-15 to 135 degrees with hyperextension
Block range of motion in 7.5 degree increments
Don-doff lock at any position at 7.5 degree increments
Removable power assists available rated 45, 60 and 90 lbs
Weight: 4.2oz (119 g) per side, without bars

Materials

Joints: Stainless steel
Sidebars: 5/8″ x 3/16″ (16×4.8 mm) 2024 aluminum
12″ proximal bars
18″ distal bars with posterior offset
Sidebars are removable
Non-corrosive coating: epoxy powder coating on bars, black flouropolymer on joints

Test Data

M-L strength: 180 lb (82 kg)
AP strength: 250 lb (113 kg)
Number of cycles: 1 million

For use with the Knee/Wrist Joint Power Unit.
