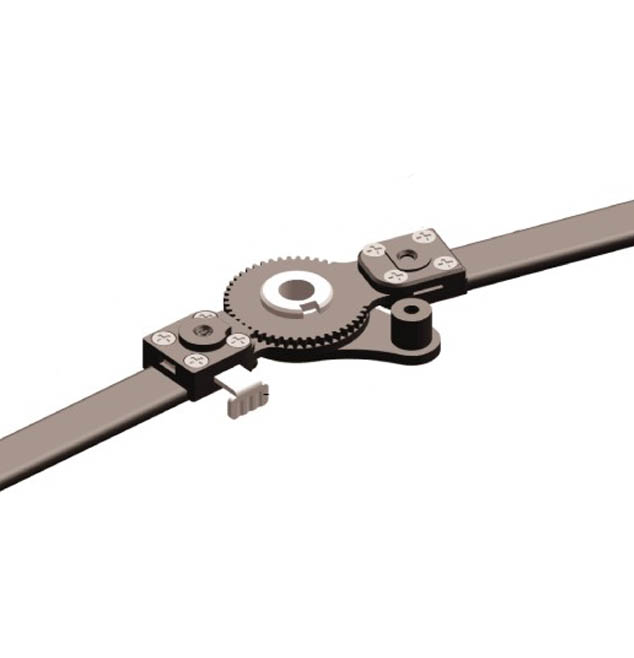

This joint can be used in the fabrication of custom orthoses for orthopedic rehabilitation and neurological spasticity treatment through low load stretching. These orthoses are considered therapeutic and are not designed for ambulation. Comes individually, specify left or right.

Range:-15 degrees hyperextension to 135 degrees flexion
Don-doff lock at any position at 7.5 degree increments (can be used for weight bearing immobilization)
Removable power assist units (45, 60 and 90 lbs)
Weight: 113g, without bars

Materials

Joints Heads: Stainless steel
Sidebars: 5/8″ x 3/16″ (16×4.8 mm) 2024 aluminum
10″ proximal and distal bars
Sidebars are removable
Non-corrosive coating: epoxy powder coating on bars, black flouropolymer on joints

Test Data

A-P static strength: 180 lb
M-L static strength: 250 lb
Number of test cycles: 1million

For use with the Bidirectional Elbow Joint Power Unit.
