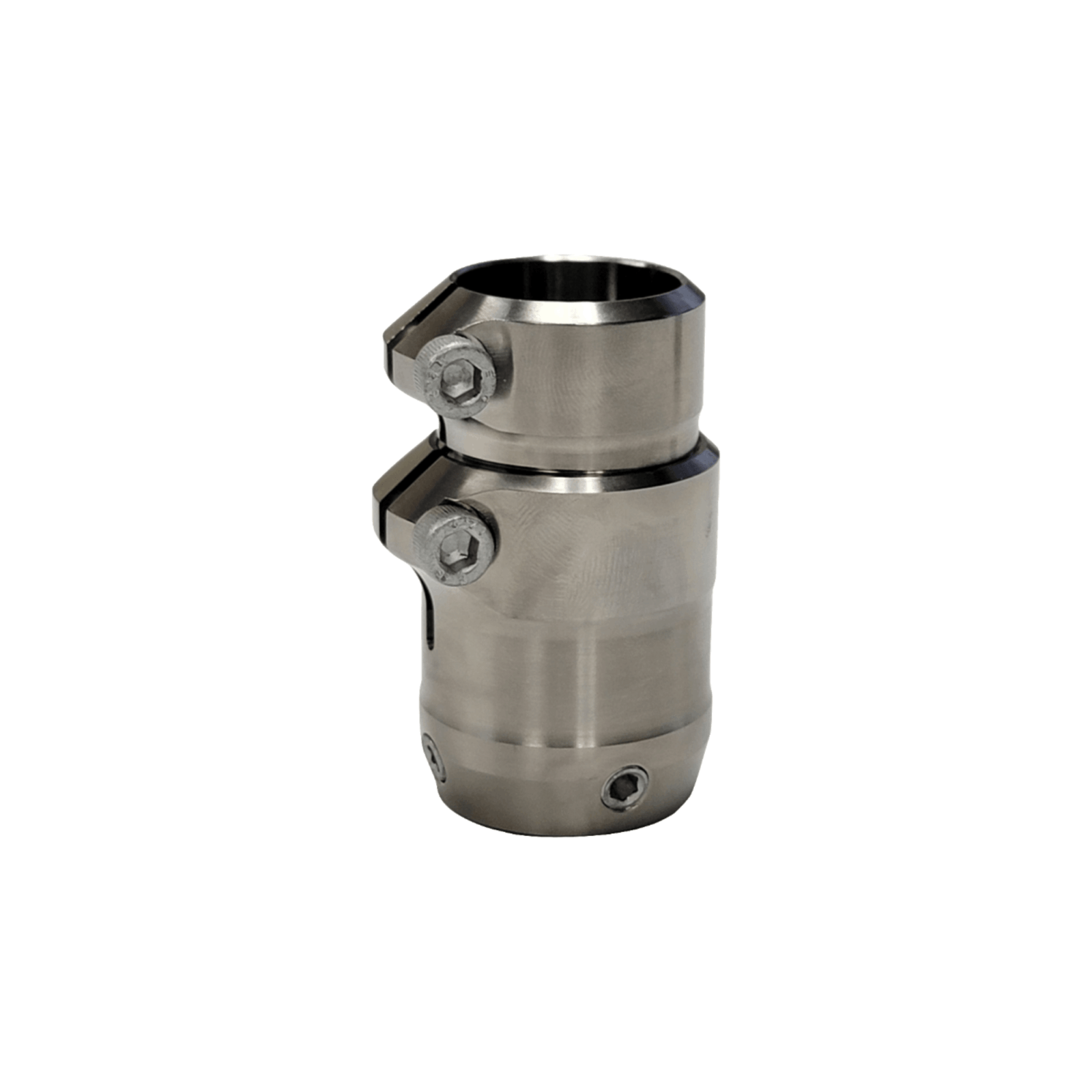

Adjustable Height Tube Clamp, Heavy Duty, Ti

The Adjustable Height Tube Clamp Pyramid Receiver, Heavy Duty, is used to connect a 30mm pylon to any pyramid system. The four set screws are used for anchoring the mating pyramid system as well as for making angular adjustment for alignment. The clamp screw can be loosened and the corresponding threaded tube section can be spun to lengthen up to a maximum of 12.7mm/0.5 in from the fully threaded in position. Total build height range is from 45mm to 57mm. Apply loctite to all threaded surfaces/screws, once the alignment and connection is finalized, (this includes the threaded tube section) to prevent rotation.

This device is recommended for temporary alignment purposes! Always swap out for correct length pylon. It is recommended that this component be swapped out for delivery of the prosthesis with the correct length tube to reduce the risk of inadvertent rotation occurring.

Warranty: 2 Years

Weight limit: 136 kg/300 lbs
