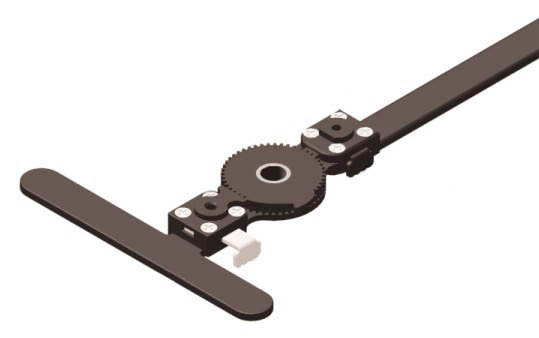

This joint can be used in the fabrication of custom wrist orthoses for orthopedic rehabilitation and neurological spasticity treatment through low load stretching. These orthoses are considered therapeutic and are not designed for ambulation. Comes individually, specify left or right.
Range: -75 to 75 degrees
Block either extension or flexion at 7.5 degree increments
Don-doff lock at any position at 7.5 degree increments
Removable power assists available (45, 60 and 90 lbs)
Weight: 87 grams (per side, without bars)
Materials
Joints: Stainless steel
Sidebars: 5/8″ x 1/8″ (16 x 3 mm) 2024 aluminum, 12″ proximal and distal bars
Non-corrosive coating: epoxy powder coating on bars, black flouropolymer on joints
Test Data
M-L Strength: 100 lbs (45 kg)
A-P Strength: 210 lbs (95 kg)
(per side, with power unit)
For use with the Knee/Wrist Joint Power Unit.
