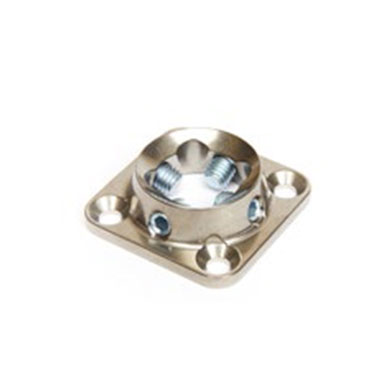

The 4-Hole Connector, Receiver is used to connect to any 4-hole thread system and pyramid connection. Used 4 flat head screws to connect to 4-hole connector. 4 set screws are used for anchoring the making pyramid system as well as for making angular adjustment for alignment. Apply recommended torque to alignment adjustment screws for connection. Apply loctite to all screws once the alignment and connection is finalized.
Product Weight: 53g
Weight Limit: 136kg / 300lbs
Torque Value: M8 Set Screw (Alignment Adjustment Screw) / Torque: 15 Nm/ Hex: 4mm wrench
